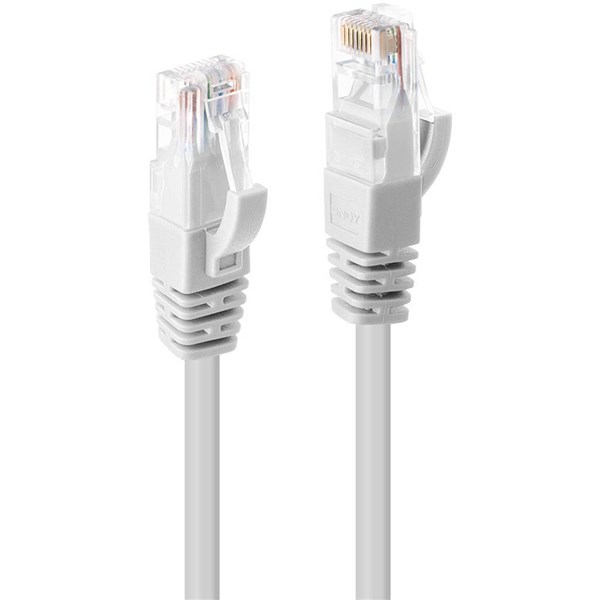

LINDY 48091 NETWORK CABLE CAT6 U/UTP GIGABIT 500MM WHITE

Code: 7109657 Brand: LINDY

Lindy Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T
Cat.6 cable for operating frequencies up to 250MHz
The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding
These cables are manufactured and tested according to the ISO/IEC 11801 specification
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time
A robust snagless strain relief design prevents damage to the connector latch during installation and removal
Twisted Pair Patch Cable with RJ45 connectors
Cat.6 U/UTP, PVC
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty

$4.36

$4.80 Inc GST

EACH

Features

CONNECTORS
Connector A: RJ45 Male
Connector B: RJ45 Male
Housing Material: Polycarbonate
Connector Plating: -
Pin Construction: Copper Alloy
Pin Plating: Gold plated
Dimensions: 11.6(w) x 22.8(d) x 8.3(h)mm
CABLE CONSTRUCTION
Length: 500mm
Colour: White
Type: Cat.6
Jacket Diameter: 5.8mm
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 24AWG
Shielding: -
GENERAL
Supported Bandwidth: 250MHz
Nominal Attenuation: 32.8dB/100m @250MHz
Minimum Band Radius: 69mm
Operating Temperature: -10 C - 60 C
Storage Temperature: -20 C - 75 C
MISCELLANEOUS
Packaging Type: Polybag
Warranty: 10 Years
Certificated: RoHS, REACH, UL, California Proposition 65
OEM: 48091
